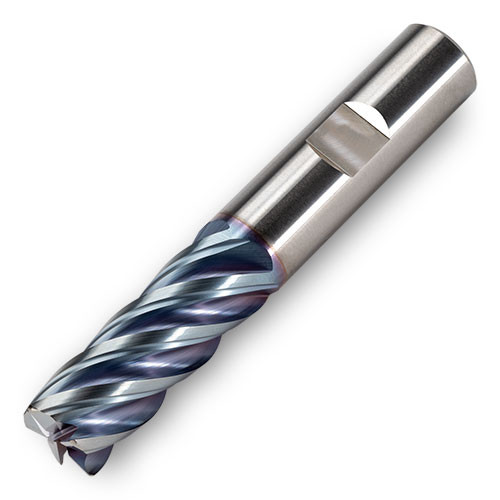

RE1-1.001.505.00Z5015W7
SQ End Mill; 1″ Dia. × 1-1/2″ LOC × 1″ Shank Dia. × 7″ OAL ; 5 FL
| Cutting Diameter (DC) | 1″ | Corner Radius (RE) | 0.015″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Ramping Angle Maximum (RMPX) | 1.5 Degrees |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Tool Type | Center Cut |
| Overall Length (OAL) | 7″ | Body Material | Carbide |
| Flute Count (NOF) | 5 | Decimal Equivalent | 1″ |
| Flute Helix Angle (FHA) | 38 Degrees | Measurement Type | Inch |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.015 R |
| Usable Length (LU) | 4.739″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Helical Interpolation | Rampdown | Shouldering | |
Product Features
| Family Description | Variable Pitch Corners: Sharp, .015″ .030″ .060″ .090″ .125″ R | Country of Origin | Usa |
