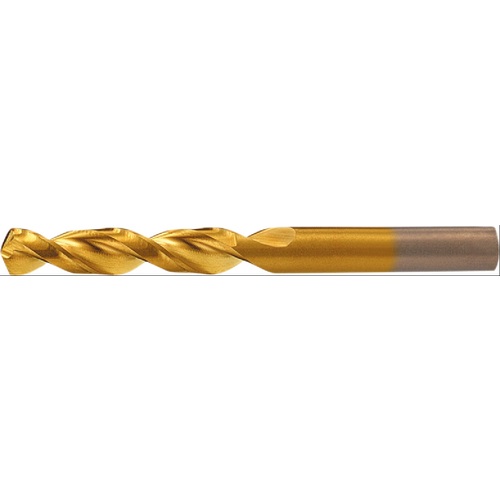

9/64 RHS / RHC HSS-CO 8% (M42) 135 Degree Split Point Q-Cobalt Wide Land Parabolic Drill - TiN
Screw Machine Drill; 9/64″ Dia. × 9/64″ Shank Dia. × 1-15/16″ OAL × 15/16″ Flute Length ; 135 Degrees ; HSSCo ; TiN ; Series 2175-TN
| Measurement Type | Inch | Flute Type | Spiral |
| Drill Bit Size / Cutting Diameter (DC) | 9/64″ | Helix Angle | CW |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 9/64″ | Flute Count (NOF) | 2 |
| Decimal Equivalent | 0.1406″ | Overall Length (OAL) | 1-15/16″ |
| Angle | 135 Degrees | Shank Type | Round |
| Shape | Screw Machine | Point Shape | Split |
| Coating | TiN | Tool Type | Drill |
| Cutting Edge Material | HSSCo | Connection Diameter Machine Side (DCONMS) | 9/64″ |
| Flute Length | 15/16″ | Series/List # | 2175-TN |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.007
