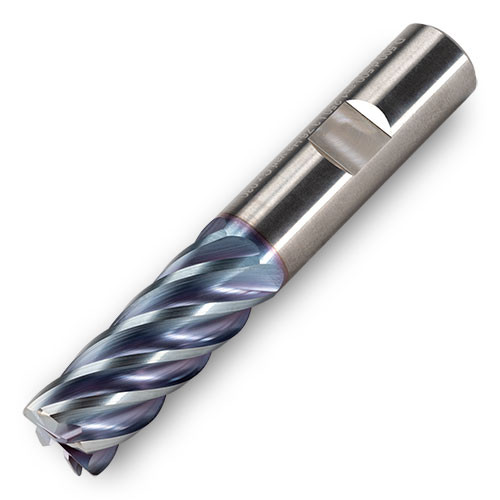

RE1-1.002.252.25Z6000W5
SQ End Mill; 1″ Dia. × 2-1/4″ LOC × 1″ Shank Dia. × 5″ OAL ; 6 FL
| Cutting Diameter (DC) | 1″ | Application | | Helical Interpolation | Rampdown | Shouldering | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Ramping Angle Maximum (RMPX) | 1.5 Degrees |
| Depth of Cut Maximum (APMX) | 2-1/4″ | Tool Type | Center Cut |
| Overall Length (OAL) | 5″ | Body Material | Carbide |
| Flute Count (NOF) | 6 | Decimal Equivalent | 1″ |
| Flute Helix Angle (FHA) | 38 Degrees | Measurement Type | Inch |
| End Shape | Square | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Usable Length (LU) | 2.739″ |
Product Features
| Country of Origin | Usa |
