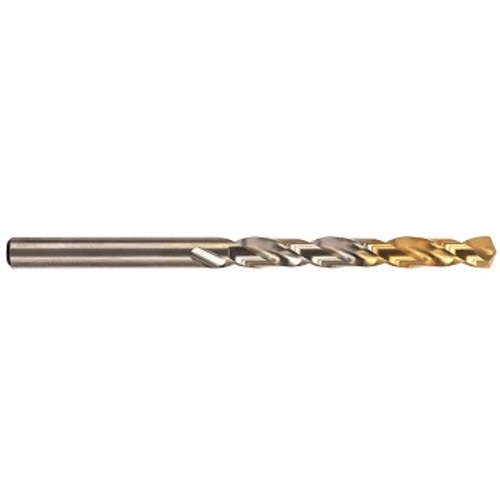

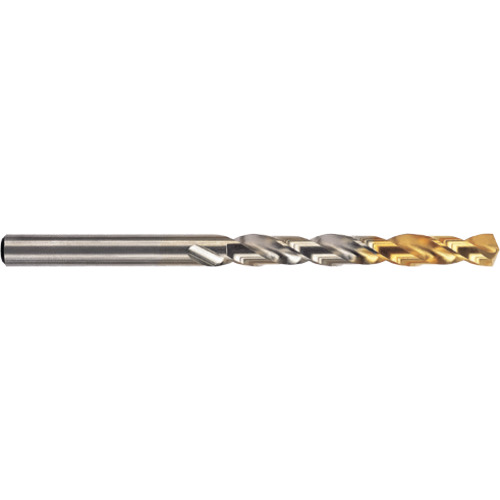

Jobber Drill; 7 mm Dia. × 7 mm Shank Dia. × 109 mm OAL × 69 mm Flute Length ; 135 Degrees ; Jobber ; HSS Co5 ; TiN ; Series DLGP195
Jobber Drill; 7 mm Dia. × 7 mm Shank Dia. × 109 mm OAL × 69 mm Flute Length ; 135 Degrees ; Jobber ; HSSCo5 ; TiN ; Series DLGP195
| Drill Bit Size / Cutting Diameter (DC) | 7 mm | Flute Length | 69 mm |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.2756″ | Helix Angle | 33 Degrees |
| Decimal Equivalent | 0.2756″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7 mm | Standard | DIN 338 |
| Measurement Type | Metric | Connection Diameter Machine Side (DCONMS) | 7 mm |
| Angle | 135 Degrees | L Group | Jobber |
| Cutting Edge Material | HSSCo5 | Series/List # | DLGP195 |
| Applicable Material | | Steel | | Flute Count (NOF) | 2 |
| Coating | TiN | Overall Length (OAL) | 109 mm |
| Coolant Supply Property (CSP) | External |
Product Features
| Country of Origin | S.Korea |
