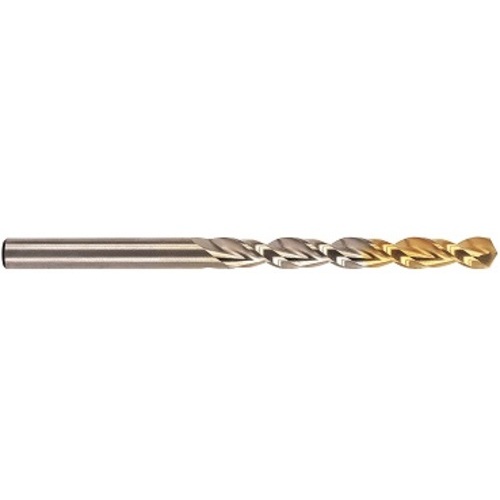

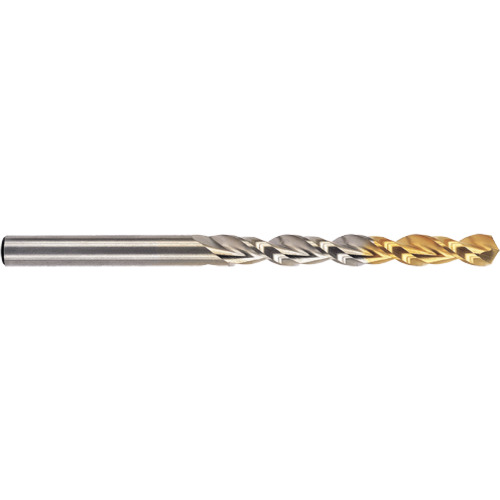

Jobber Drill; 4.1 mm Dia. × 4.1 mm Shank Dia. × 75 mm OAL × 43 mm Flute Length ; 130 Degrees ; Jobber ; HSS Co5 ; TiN ; Series DLGP506
Jobber Drill; 4.1 mm Dia. × 4.1 mm Shank Dia. × 75 mm OAL × 43 mm Flute Length ; 130 Degrees ; Jobber ; HSSCo5 ; TiN ; Series DLGP506
| Drill Bit Size / Cutting Diameter (DC) | 4.1 mm | Flute Length | 43 mm |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.1614″ | Helix Angle | 38 Degrees |
| Decimal Equivalent | 0.1614″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.1 mm | Standard | DIN 338 |
| Measurement Type | Metric | Connection Diameter Machine Side (DCONMS) | 4.1 mm |
| Angle | 130 Degrees | L Group | Jobber |
| Cutting Edge Material | HSSCo5 | Series/List # | DLGP506 |
| Applicable Material | | Steel | | Flute Count (NOF) | 2 |
| Coating | TiN | Overall Length (OAL) | 75 mm |
| Coolant Supply Property (CSP) | External |
Product Features
| Country of Origin | S.Korea |
