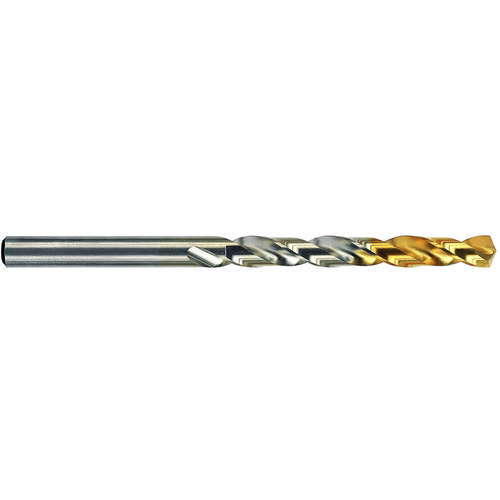

Jobber Drill; 10.1 mm Dia. × 10.1 mm Shank Dia. × 133 mm OAL × 87 mm Flute Length ; 135 Degrees ; Jobber ; HSS Co5 ; TiN ; Series DLGP195
Jobber Drill; 10.1 mm Dia. × 10.1 mm Shank Dia. × 133 mm OAL × 87 mm Flute Length ; 135 Degrees ; Jobber ; HSSCo5 ; TiN ; Series DLGP195
| Drill Bit Size / Cutting Diameter (DC) | 10.1 mm | Flute Length | 87 mm |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.3976″ | Helix Angle | 33 Degrees |
| Decimal Equivalent | 0.3976″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10.1 mm | Standard | DIN 338 |
| Measurement Type | Metric | Connection Diameter Machine Side (DCONMS) | 10.1 mm |
| Angle | 135 Degrees | L Group | Jobber |
| Cutting Edge Material | HSSCo5 | Series/List # | DLGP195 |
| Applicable Material | | Steel | | Flute Count (NOF) | 2 |
| Coating | TiN | Overall Length (OAL) | 133 mm |
| Coolant Supply Property (CSP) | External |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5.5
Package Width
1.25
Package Height
1.25
Package Weight
0
