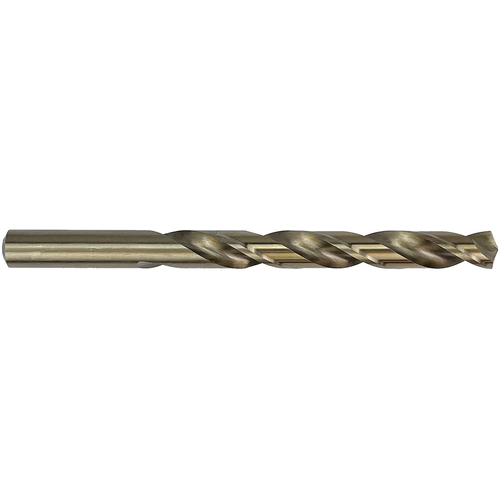

| Drill Bit Size / Cutting Diameter (DC) | #49 | Flute Length | 1″ |
| Decimal Equivalent | 0.0730 | Point Shape | Split |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #49 | Shank Type | Round |
| Measurement Type | Wire Gauge | Connection Diameter Machine Side (DCONMS) | 0.073″ |
| Cutting Edge Material | HSSCo | Shape | Jobber Drill |
| Coating | Black Oxide | Tool Radius | 135 Degrees |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 2″ |
| Cutting Depth | 1″ |
Product Features
| Remarks | •Cobalt heavy duty jobber drills •Surface treated, 135° split point •Cobalt jobbers drills are used for drilling in tough, high tensile strength materials like stainless steels, titanium and inconel •Heavy duty flute construction •Made to NAS907 Type J specifications •General Purpose Drill •Ideal for drilling holes at economical prices | Country of Origin | USA |
Shipping Info
Package Length
2.00000
Package Width
.50000
Package Height
.50000
Package Weight
.004
