FM-202-32-060 1-IN DIA 2-

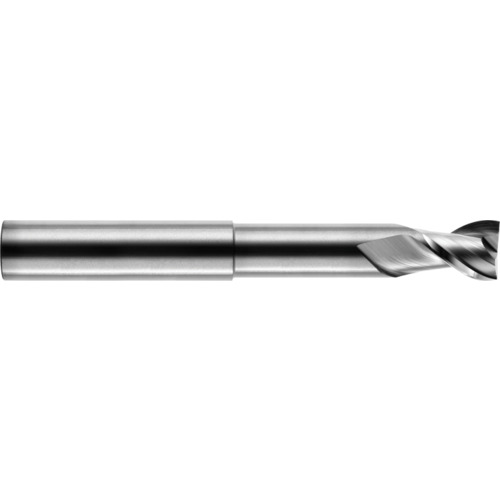

Corner Radius End Mill; 1″ Dia. × 1″ LOC × 1″ Shank Dia. × 6″ OAL ; 2 FL ; Uncoated ; Series FM-202
| Cutting Diameter (DC) | 1″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1″ | Usable Length (LU) | 3″ |
| Depth of Cut Maximum (APMX) | 1″ | Corner Radius (RE) | 0.06″ |
| Overall Length (OAL) | 6″ | Tool Type | Solid Carbide Endmill |
| Coating | Uncoated | Decimal Equivalent | 1″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 40 Degrees | Series/List # | FM-202 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.999
