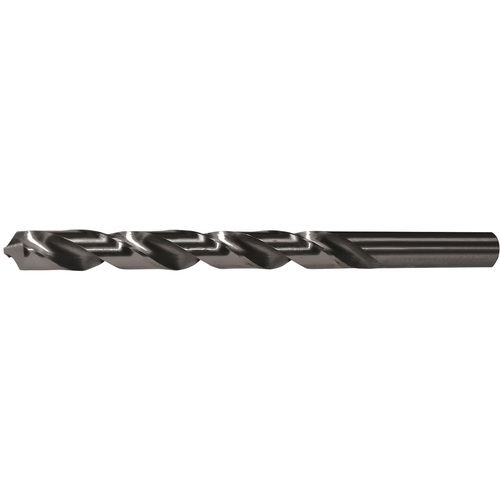

21/64 RHS / RHC HSS 118 Degree Radial Point CLE-MAX Jobber Drill - Steam Oxide
Jobber Drill; 21/64″ Dia. × 21/64″ Shank Dia. × 4-5/8″ OAL × 3-5/16″ Flute Length ; 118 Degrees ; Spiral Flute ; HSSE ; Black Oxide ; Series 2001G
| Drill Bit Size / Cutting Diameter (DC) | 21/64″ | Point Shape | Radial |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 21/64″ | Shank Type | Round |
| Decimal Equivalent | 0.3281″ | Standard | ASME B94.11M |
| Measurement Type | Inch | Connection Diameter Machine Side (DCONMS) | 21/64″ |
| Angle | 118 Degrees | Shape | Jobber Drill |
| Cutting Edge Material | HSSE | Tool Type | Drill |
| Flute Type | Spiral | Tool Radius | 118 Degrees |
| Coating | Black Oxide | Series/List # | 2001G |
| Flute Length | 3-5/16″ | Flute Count (NOF) | 2 |
| Helix Angle | 32 Degrees | Overall Length (OAL) | 4-5/8″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.077
