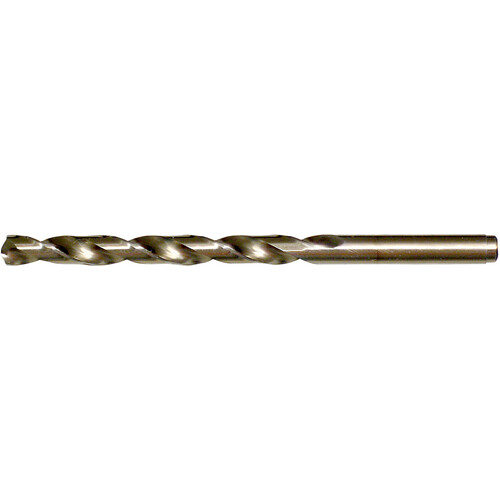

3/16 RHS / RHC HSS-CO 8% (M42) 135 Degree Split Point Cobalt Heavy Duty Jobber Length Drill - Straw / Gold Oxide
Jobber Drill; 3/16″ Dia. × 3/16″ Shank Dia. × 3-1/2″ OAL × 2-5/16″ Flute Length ; 135 Degrees ; Spiral Flute ; HSSCo ; Series 1603
| Drill Bit Size / Cutting Diameter (DC) | 3/16″ | Point Shape | Split |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/16″ | Shank Type | Round |
| Decimal Equivalent | 0.1875″ | Connection Diameter Machine Side (DCONMS) | 3/16″ |
| Measurement Type | Inch | Shape | Jobber Drill |
| Angle | 135 Degrees | Tool Type | Drill |
| Cutting Edge Material | HSSCo | Tool Radius | 135 Degrees |
| Flute Type | Spiral | Series/List # | 1603 |
| Flute Length | 2-5/16″ | Flute Count (NOF) | 2 |
| Helix Angle | CW | Overall Length (OAL) | 3-1/2″ |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
0.024
