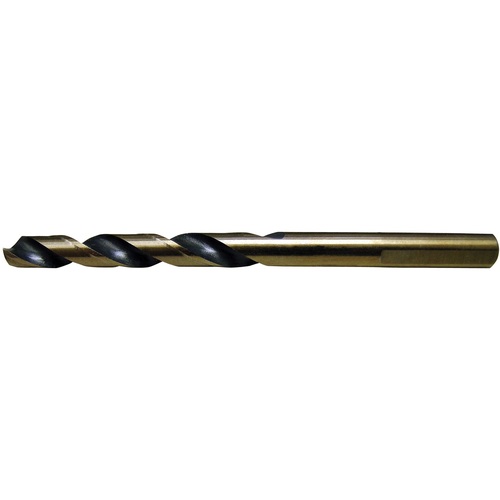

23/64 RHS / RHC HSS 135 Degree Split Point Heavy Duty Mechanics Length Drill - Black & Gold
Jobber Drill; 23/64″ Dia. × 23/64″ Shank Dia. × 4-3/16″ OAL × 2-11/16″ Flute Length ; 135 Degrees ; Spiral Flute ; HSS ; | Black Oxide | Gold Oxide | ; Series 1620
| Drill Bit Size / Cutting Diameter (DC) | 23/64″ | Point Shape | Split |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 23/64″ | Shank Type | Round |
| Decimal Equivalent | 0.3594″ | Connection Diameter Machine Side (DCONMS) | 23/64″ |
| Measurement Type | Inch | Shape | Split Point|Heavy Duty |
| Angle | 135 Degrees | Tool Type | Drill |
| Cutting Edge Material | HSS | Tool Radius | 135 Degrees |
| Flute Type | Spiral | Series/List # | 1620 |
| Coating | | Black Oxide | Gold Oxide | | Flute Count (NOF) | 2 |
| Flute Length | 2-11/16″ | Overall Length (OAL) | 4-3/16″ |
| Helix Angle | CW |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
.088
