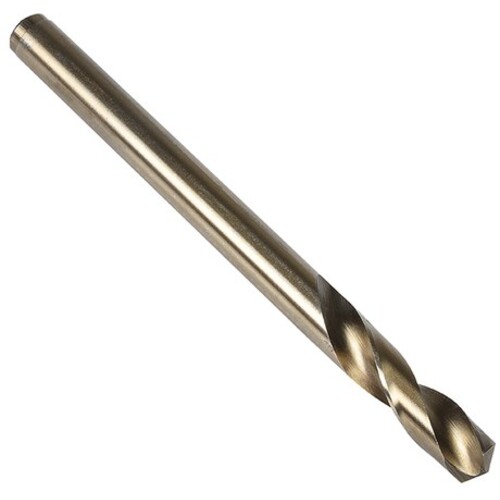

#22 HSS-E Bronze 135 NAS907D Jobber Drill NAS907 Series R89CO E-code # R89CON22
Jobber Drill; #22 Dia. × 3-1/8″ OAL × 1-1/16″ Flute Length ; 3xD ; HSSCo ; Bronze Oxide ; Series R89CO
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | #22 | Helix Angle | CW |
| Decimal Equivalent | 0.1570 | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #22 | Standard | NAS 907 |
| Measurement Type | Wire Gauge | L Group | 3xD |
| Cutting Edge Material | HSSCo | Shape | Solid Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Tool Radius | 135 Degrees |
| Coating | Bronze Oxide | Series/List # | R89CO |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 3-1/8″ |
| Flute Length | 1-1/16″ |
Product Features
| Family Description | E-code # R89CON22 | Country of Origin | Brazil |
Shipping Info
Package Weight
.9990
