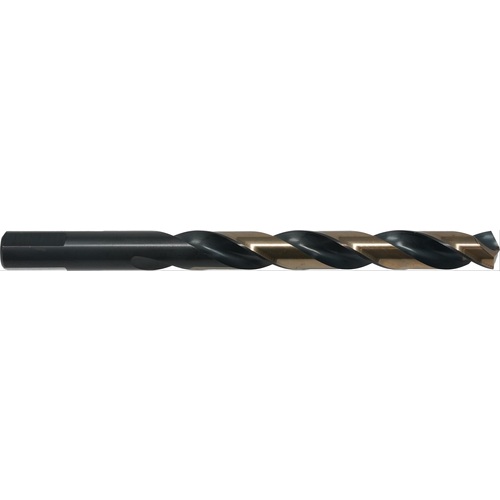

H RHS / RHC HSS 135 Degree Split Point Heavy Duty Jobber Length Drill - Black & Gold
Jobber Drill; H Dia. x 17/64″ Shank Dia. × 4-1/8″ OAL × 2-7/8″ Flute Length ; 135 Degrees ; Spiral Flute ; HSS ; | Black Oxide | Gold Oxide | ; Series 1878
| Drill Bit Size / Cutting Diameter (DC) | H | Point Shape | Split |
| Decimal Equivalent | 0.266″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | H | Connection Diameter Machine Side (DCONMS) | 17/64″ |
| Measurement Type | Letter | Shape | Jobber Drill |
| Angle | 135 Degrees | Tool Type | Drill |
| Cutting Edge Material | HSS | Tool Radius | 135 Degrees |
| Flute Type | Spiral | Series/List # | 1878 |
| Coating | | Black Oxide | Gold Oxide | | Flute Count (NOF) | 2 |
| Flute Length | 2-7/8″ | Overall Length (OAL) | 4-1/8″ |
| Helix Angle | CW |
Product Features
| Country of Origin | UNITED STATES |
Shipping Info
Package Weight
.046
