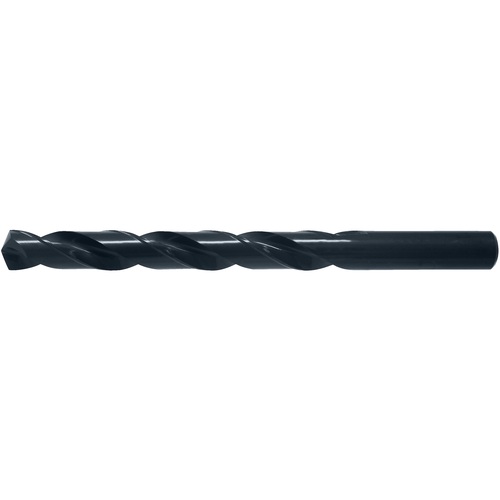

3/32 RHS / RHC HSS 135 Degree Split Point Heavy Duty Jobber Drill - Steam Oxide
Jobber Drill; 3/32″ Dia. × 3/32″ Shank Dia. × 2-1/4″ OAL × 1-1/4″ Flute Length ; 135 Degrees ; Spiral Flute ; HSS ; Black Oxide ; Series 150ASP
| Drill Bit Size / Cutting Diameter (DC) | 3/32″ | Point Shape | Split |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/32″ | Shank Type | Round |
| Decimal Equivalent | 0.0938″ | Connection Diameter Machine Side (DCONMS) | 3/32″ |
| Measurement Type | Inch | Shape | Jobber Drill |
| Angle | 135 Degrees | Tool Type | Drill |
| Cutting Edge Material | HSS | Tool Radius | 135 Degrees |
| Flute Type | Spiral | Series/List # | 150ASP |
| Coating | Black Oxide | Flute Count (NOF) | 2 |
| Flute Length | 1-1/4″ | Overall Length (OAL) | 2-1/4″ |
| Helix Angle | CW |
Product Features
| Country of Origin | USA |
