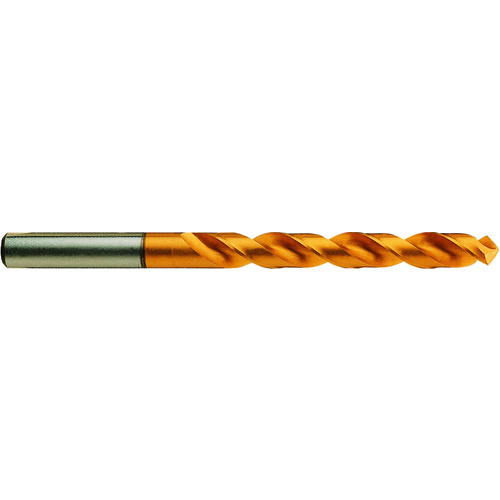

Jobber Drill; 9.7 mm Dia. × 9.7 mm Shank Dia. × 137 mm OAL × 87 mm Flute Length ; 120 Degrees ; Jobber ; HSS EX ; TiN ; Series DJ544
| Drill Bit Size / Cutting Diameter (DC) | 9.7 mm | Flute Length | 87 mm |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.3819″ | Helix Angle | 38 Degrees |
| Decimal Equivalent | 0.3819″ | Shank Standard | h7 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.7 mm | Standard | DIN6535 |
| Measurement Type | Metric | Connection Diameter Machine Side (DCONMS) | 9.7 mm |
| Angle | 120 Degrees | L Group | Jobber |
| Cutting Edge Material | HSS-EX | Tool Type | Twist Drill |
| Applicable Material | | Steel | Stainless Steel | | Series/List # | DJ544 |
| Coating | TiN | Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 137 mm |
| Cutting Depth | 87 mm |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.625
Package Width
0.625
Package Height
0.625
Package Weight
0.126
