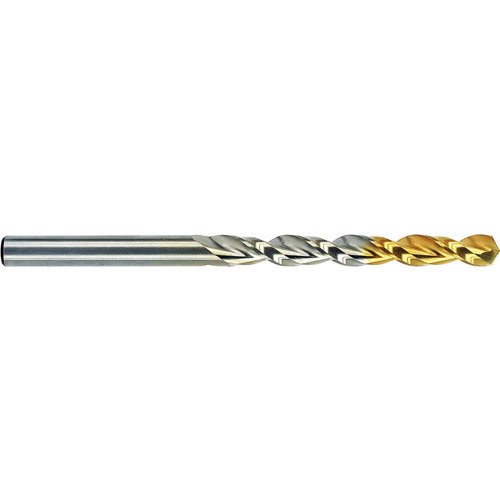

Jobber Drill; 12.7 mm Dia. × 12.7 mm Shank Dia. × 151 mm OAL × 101 mm Flute Length ; 130 Degrees ; Jobber ; HSS Co5 ; TiN ; Series DLGP506
Jobber Drill; 12.7 mm Dia. × 12.7 mm Shank Dia. × 151 mm OAL × 101 mm Flute Length ; 130 Degrees ; Jobber ; HSSCo5 ; TiN ; Series DLGP506
| Drill Bit Size / Cutting Diameter (DC) | 12.7 mm | Flute Length | 101 mm |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.5″ | Helix Angle | 38 Degrees |
| Decimal Equivalent | 0.5″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 12.7 mm | Standard | DIN 338 |
| Measurement Type | Metric | Connection Diameter Machine Side (DCONMS) | 12.7 mm |
| Angle | 130 Degrees | L Group | Jobber |
| Cutting Edge Material | HSSCo5 | Series/List # | DLGP506 |
| Applicable Material | | Steel | | Flute Count (NOF) | 2 |
| Coating | TiN | Overall Length (OAL) | 151 mm |
| Coolant Supply Property (CSP) | External |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
6.25
Package Width
1.5
Package Height
1.5
Package Weight
1.1555
