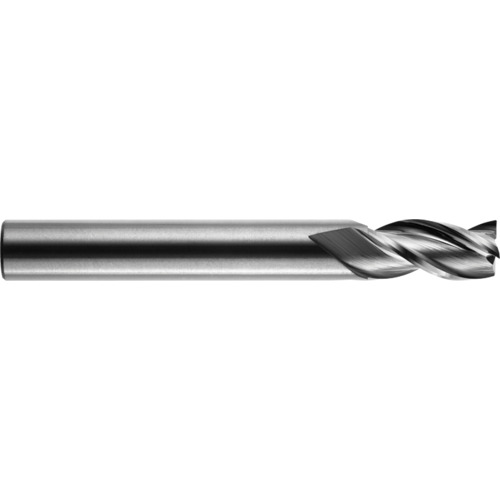

A1-303-08 0.25-IN DIA 3-F
SQ End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; Uncoated ; Series A1-303
| Cutting Diameter (DC) | 1/4″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Corner Chamfer Width (CHW) | 0.005″ |
| Depth of Cut Maximum (APMX) | 3/4″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 2-1/2″ | Decimal Equivalent | 0.25″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | A1-303 |
| Flute Helix Angle (FHA) | 35 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.999
