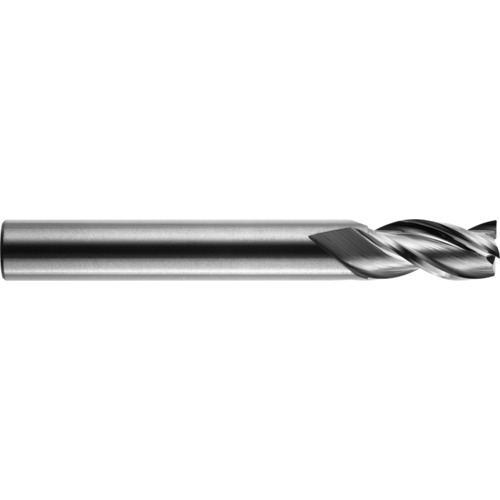

A1-303-06 0.1875-IN DIA 3
Chamfer End Mill; 3/16″ Dia. × 9/16″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 3 FL ; Uncoated ; Series A1-303
| Cutting Diameter (DC) | 3/16″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Corner Chamfer Width (CHW) | 0.005″ |
| Depth of Cut Maximum (APMX) | 9/16″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 2″ | Decimal Equivalent | 0.1875″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | A1-303 |
| Flute Helix Angle (FHA) | 35 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.999
