47D-5010S4RC06S5 IN2006

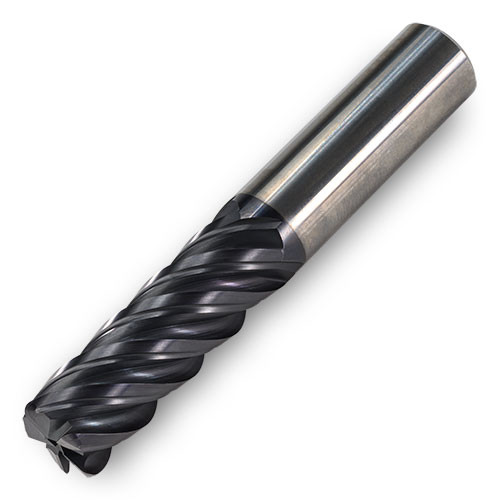

SQ End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 0.06″ RE ; 5 FL
| Cutting Diameter (DC) | 1/2″ | Corner Radius (RE) | 0.06″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Ramping Angle Maximum (RMPX) | 3 Degrees |
| Depth of Cut Maximum (APMX) | 1″ | Tool Type | Center Cut |
| Overall Length (OAL) | 3″ | Body Material | Carbide |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.5″ |
| Flute Helix Angle (FHA) | 43 Degrees | Measurement Type | Inch |
| End Shape | Corner Radius | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Helical Interpolation | Rampdown | Shouldering | |
Product Features
| Family Description | Variable Pitch Center-cutting Corners: Sharp, .015″ .030″ .060″ .090″ .125″ .188″ .250″ R | Country of Origin | Usa |
Shipping Info
Package Weight
0.000
