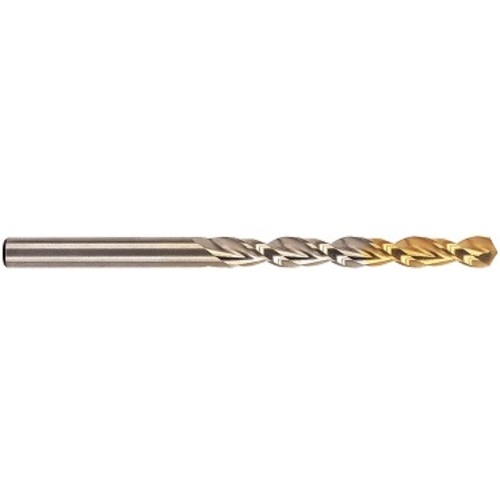

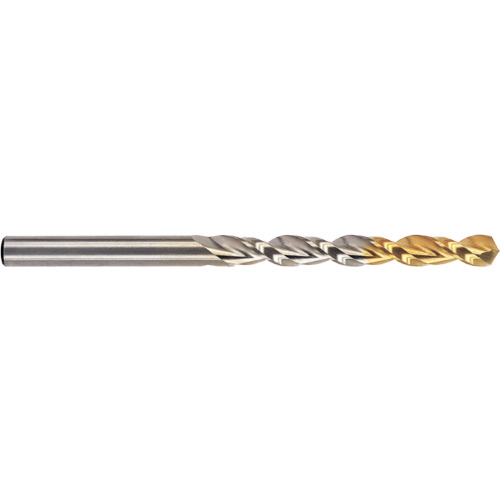

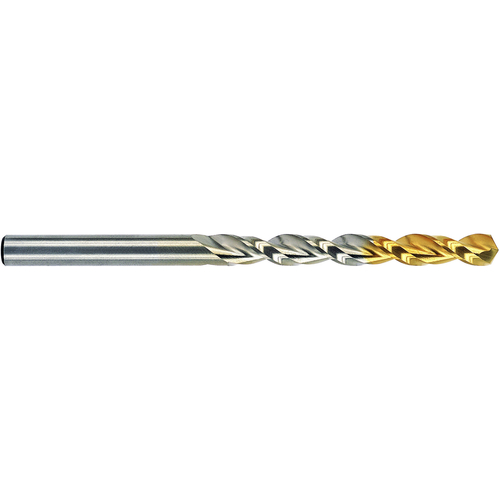

Jobber Drill; 9/16″ Dia. × 35/64″ Shank Dia. × 6-5/8″ OAL × 4-13/16″ Flute Length ; 135 Degrees ; Jobber ; Worm Pattern Flute ; HSS Co5 ; TiN ; Series DLGP511
Jobber Drill; 9/16″ Dia. × 35/64″ Shank Dia. × 6-5/8″ OAL × 4-13/16″ Flute Length ; 135 Degrees ; Jobber ; Worm Pattern Flute ; HSSCo5 ; TiN ; Series DLGP511
| Drill Bit Size / Cutting Diameter (DC) | 9/16″ | Coolant Supply Property (CSP) | External |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 9/16″ | Flute Length | 4-13/16″ |
| Decimal Equivalent | 0.5625″ | Helix Angle | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 14.288 mm | Shank Type | Round |
| Measurement Type | Inch | Standard | ANSI |
| Angle | 135 Degrees | Connection Diameter Machine Side (DCONMS) | 35/64″ |
| Cutting Edge Material | HSSCo5 | L Group | Jobber |
| Flute Type | Worm Pattern | Series/List # | DLGP511 |
| Applicable Material | | Steel | | Flute Count (NOF) | 2 |
| Coating | TiN | Overall Length (OAL) | 6-5/8″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
6.811023622
Package Width
0.669291339
Package Height
0.669291339
Package Weight
0.999
