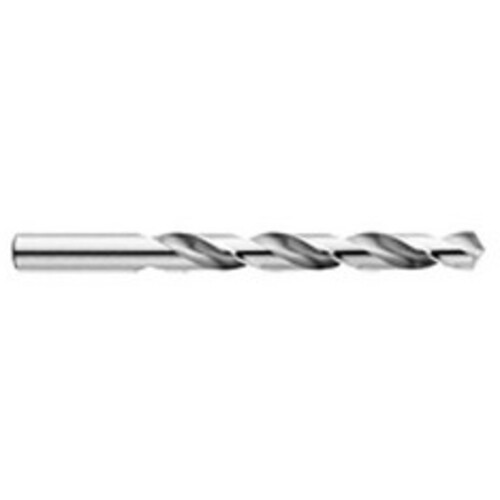

#14; Jobber Length; High Speed Steel; Bright; Made In U.S.A. Series/List #1340B
Jobber Drill; #14 Dia. × 0.182″ Shank Dia. × 3-3/8″ OAL × 2-3/16″ Flute Length ; 118 Degrees ; Standard Flute ; HSS ; Uncoated ; Series 1340B
| Drill Bit Size / Cutting Diameter (DC) | #14 | Coolant Supply Property (CSP) | External |
| Decimal Equivalent | 0.182″ | Flute Length | 2-3/16″ |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #14 | Point Shape | Standard |
| Measurement Type | Wire Gauge | Shank Type | Round |
| Angle | 118 Degrees | Connection Diameter Machine Side (DCONMS) | 0.182″ |
| Cutting Edge Material | HSS | Tool Type | General Purpose |
| Flute Type | Standard | Series/List # | 1340B |
| Coating | Uncoated | Overall Length (OAL) | 3-3/8″ |
Product Features
| Remarks | Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Length
3.45000
Package Width
.18000
Package Height
.18000
Package Weight
0.01
