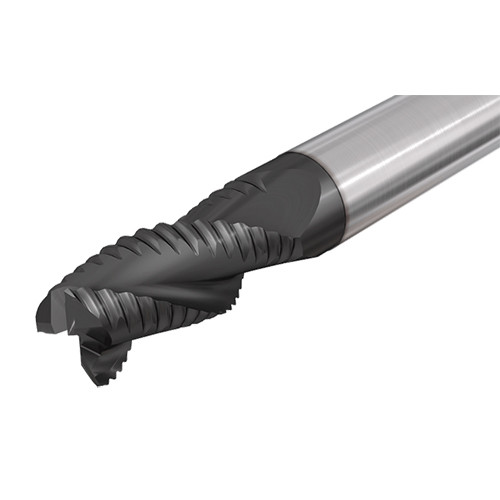

ERC160E32-3C16CH06DA92 IC1508
SQ End Mill; 16 mm Dia. × 32 mm LOC × 16 mm Shank Dia. × 92 mm OAL ; 3 FL ; 44 mm LBS ; Carbide ; DLC

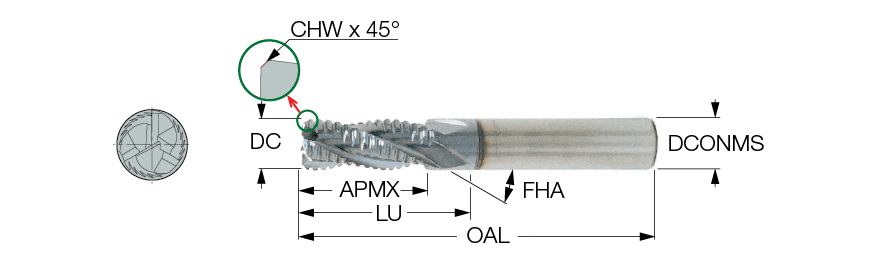

| Cutting Diameter (DC) | 16 mm | Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Corner Chamfer Width (CHW) | 0.6 mm |
| Depth of Cut Maximum (APMX) | 32 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 92 mm | Grade | IC1508 |
| Cutting Edge Material | Carbide | Body Half Taper Angle (BHTA) | 15 Degrees |
| Coating | DLC | Tool Type | Solid carbide center cutting endmills 90° |
| Flute Count (NOF) | 3 | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Flute Helix Angle (FHA) | 38 Degrees | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Shank Type | Round | Coolant Supply Property (CSP) | External |
| End Shape | Chamfer | Body Material | Carbide |
| Usable Length (LU) | 44 mm | Measurement Type | Metric |
| Applicable Material | | Aluminum / Non-Ferrous Materials | |
Product Features
| Family Description | 3 flute, 38° helix medium length solid carbide roughing endmills. Used for maximum stock removal on aluminum and other nonferrous materials. | Country of Origin | Israel |
Shipping Info
Package Weight
0.472
