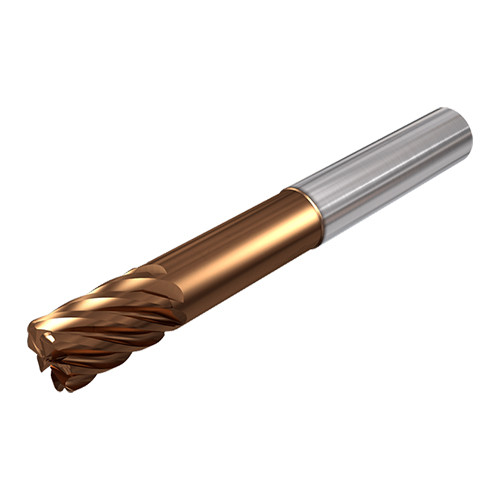

ECI-7 500-2.5C015VF5 IC608
SQ End Mill; 1/2″ Dia. × 2-1/2″ LOC × 1/2″ Shank Dia. × 5″ OAL ; 0.015″ RE ; 7 FL ; 2-1/2″ LBS ; Carbide ; AlTiCrSiN

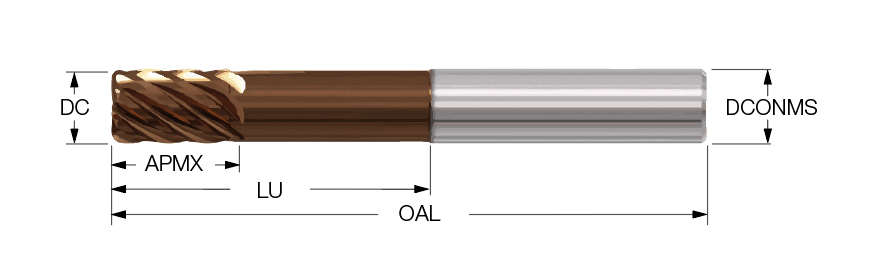

| Cutting Diameter (DC) | 1/2″ | Application | | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 0.015″ |
| Depth of Cut Maximum (APMX) | 2-1/2″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 5″ | Grade | IC608 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide non center cutting endmills 90° |
| Coating | AlTiCrSiN | Maximum Feed per Tooth (fz(max)) | 0.0044 ″/tooth |
| Flute Count (NOF) | 7 | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Shank Type | Round | Coolant Supply Property (CSP) | External |
| End Shape | Corner Radius | Body Material | Carbide |
| Usable Length (LU) | 2-1/2″ | Decimal Equivalent | 0.5″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
Product Features
| Family Description | 7 flute endmill with and without relieved neck, assorted radii and variable pitch for chatter dampening | Country of Origin | USA |
Shipping Info
Package Weight
0.027
