49J00312T9RL550 IN05S

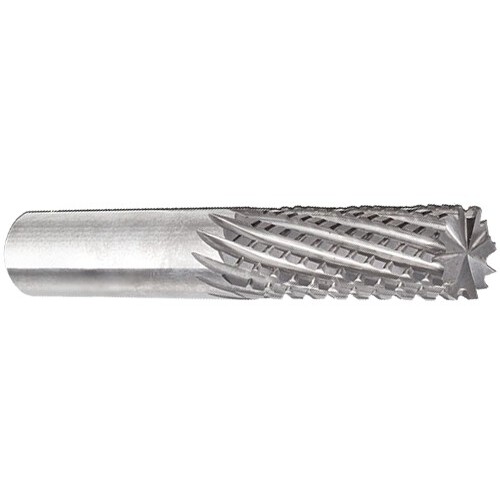

SQ End Mill; 3 mm Dia. × 15 mm LOC × 3 mm Shank Dia. × 55 mm OAL ; 10 FL
| Cutting Diameter (DC) | 3 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Applicable Material | | Cast Iron | Non Ferrous Metals | |
| Depth of Cut Maximum (APMX) | 15 mm | Application | Shouldering | Slotting |
| Overall Length (OAL) | 55 mm | Grade | IN05S |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlTiN | Body Material | Steel |
| Flute Count (NOF) | 10 | Decimal Equivalent | 0.035″ |
| Flute Helix Angle (FHA) | 15 Degrees | Measurement Type | Metric |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.8
