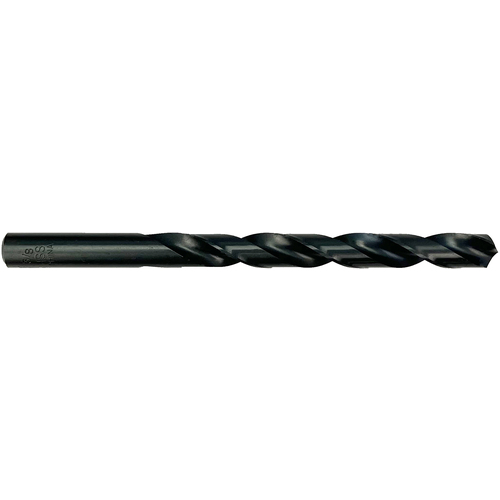

60 Dia-1-5/8 OAL-Surface Treated-HSS-Stnd Jobber
Jobber Drill; #60 Dia. × 0.04″ Shank Dia. × 1-5/8″ OAL × 11/16″ Flute Length ; HSS ; Black Oxide
| Drill Bit Size / Cutting Diameter (DC) | #60 | Flute Length | 11/16″ |
| Decimal Equivalent | 0.0400 | Point Shape | Standard |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #60 | Shank Type | Round |
| Measurement Type | Wire Gauge | Connection Diameter Machine Side (DCONMS) | 0.04″ |
| Cutting Edge Material | HSS | Shape | Jobber Drill |
| Coating | Black Oxide | Tool Radius | 118 Degrees |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 1-5/8″ |
| Cutting Depth | 11/16″ |
Product Features
| Remarks | •Jobber drills •High speed steel • 118° Standard point • Surface treated •All drills are ground from the solid • Provides high resistance to abrasion • Also, helps to reduce the tendency of soft materials to load on the drill • General purpose drill • Ideal for drilling holes at economical prices | Country of Origin | China |
Shipping Info
Additional Fees and Notes
0
Package Length
1.75000
Package Width
.04000
Package Height
.04000
Package Weight
0.002
