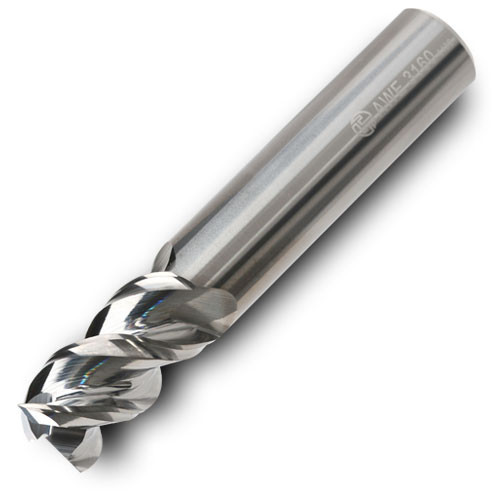

46J01630T3RW090 IN05S
SQ End Mill; 16 mm Dia. × 30 mm LOC × 16 mm Shank Dia. × 90 mm OAL ; 3 FL ; Carbide
| Cutting Diameter (DC) | 16 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 30 mm | Application | | Shouldering | |
| Overall Length (OAL) | 90 mm | Grade | IN05S |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 50 Degrees | Measurement Type | Metric |
Product Features
| Family Description | Variable pitch, variable helix Aluminum applications, wave-cut | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.000
