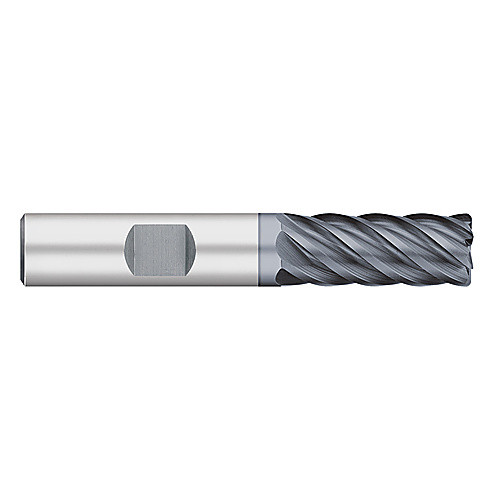

TC67188 V62RR 3/4 6F VI
Corner Radius End Mill; 3/4″ Dia. × 1-5/8″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 6 FL ; Carbide ; AlTiCrN
| Cutting Diameter (DC) | 3/4″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Usable Length (LU) | 1-5/8″ |
| Overall Length (OAL) | 4″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.75″ |
| Coating | AlTiCrN | Measurement Type | Inch |
| Flute Count (NOF) | 6 | Corner Radius (RE) / Chamfer Width (CHW) | 0.06″ |
| Flute Helix Angle (FHA) | 38 Degrees | Center Cutting | Yes |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.825
