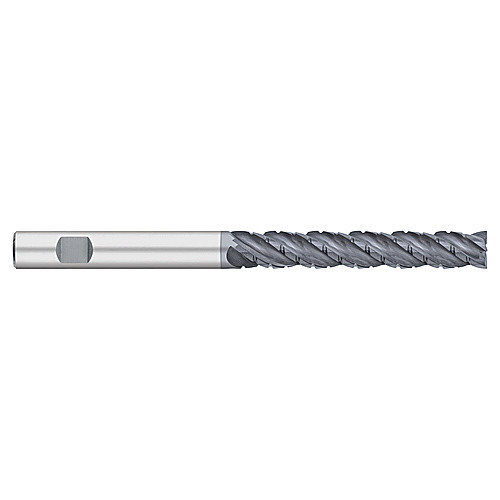

TC28225 V42XLRCB 3/4 4F
SQ End Mill; 3/4″ Dia. × 4″ LOC × 3/4″ Shank Dia. × 7″ OAL ; 0.03″ RE ; 4 FL ; 4″ LBS ; Carbide ; AlTiCrN
| Cutting Diameter (DC) | 3/4″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 4″ | Usable Length (LU) | 4″ |
| Overall Length (OAL) | 7″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.75″ |
| Coating | AlTiCrN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Flute Helix Angle (FHA) | 38 Degrees | Center Cutting | Yes |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
2.165
