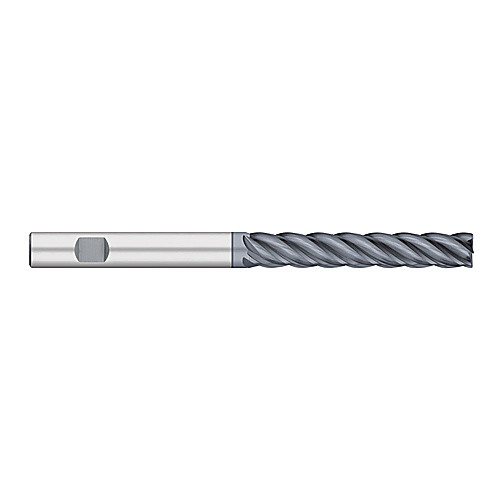

TC28011 V52XLR 5/8 5F EX
Corner Radius End Mill; 5/8″ Dia. × 3″ LOC × 5/8″ Shank Dia. × 6″ OAL ; 5 FL ; Carbide ; AlTiCrN
| Cutting Diameter (DC) | 5/8″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 3″ | Usable Length (LU) | 3″ |
| Overall Length (OAL) | 6″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.625″ |
| Coating | AlTiCrN | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Corner Radius (RE) / Chamfer Width (CHW) | 0.06″ |
| Flute Helix Angle (FHA) | 38 Degrees | Center Cutting | Yes |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.713
