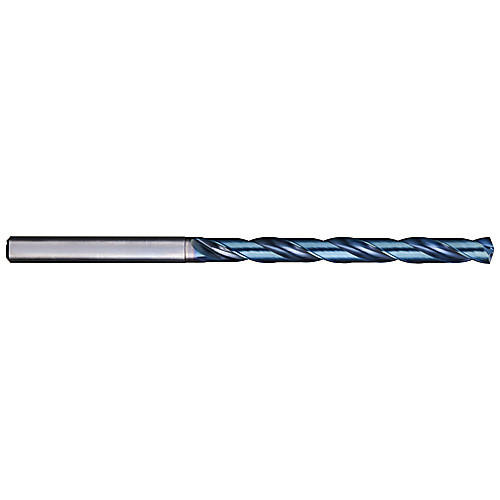

5/16″ Dia. - TiAlN Coated HSS-Co Drill Bit
Taper Length Drill; 5/16″ Dia. × 12.0079″ OAL × 8.2678″ Flute Length ; CW ; HSSCo ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 5/16″ | Flute Type | Spiral |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/16″ | Helix Angle | CW |
| Decimal Equivalent | 0.3125 | Measurement Type | Inch |
| Angle | 118 Degrees | Flute Count (NOF) | 2 |
| Applicable Material | | Steel | Cast Iron | Hard Materials | | Overall Length (OAL) | 12.0079″ |
| Coating | TiAlN | Point Shape | Standard |
| Cutting Edge Material | HSSCo | Shank Type | Round |
| Flute Length | 8.2678″ |
Product Features
| Remarks | Suitable for drilling in: High Carbon Steel, Alloy Steel, Die Steel, up to 35HRC Hardened Steel, Cast Iron | Country of Origin | Japan |
Shipping Info
Package Weight
0.099
