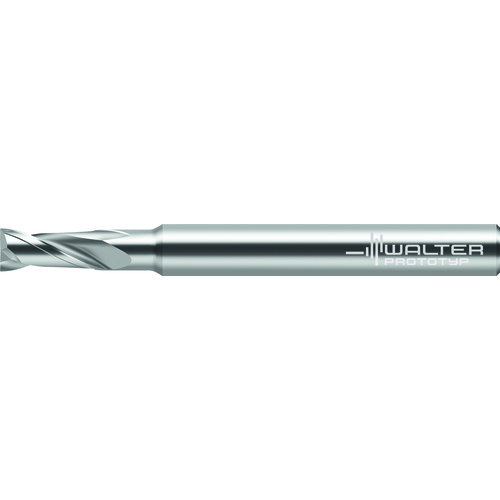

MD266-05.0A2BC-WJ30UU
SQ End Mill; 5 mm Dia. × 10 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 0.1 mm RE ; 2 FL ; 18 mm LBS ; Carbide ; Uncoated ; Series MD266
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 5 mm | Usable Length (LU) | 18 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 10 mm | Grade | WJ30UU |
| Overall Length (OAL) | 57 mm | Tool Type | Square Endmill |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Shank Standard | DIN 6535 HA |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round | Series/List # | MD266 |
| End Shape | Square | Corner Radius (RE) / Chamfer Width (CHW) | 0.1 mm |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.051
