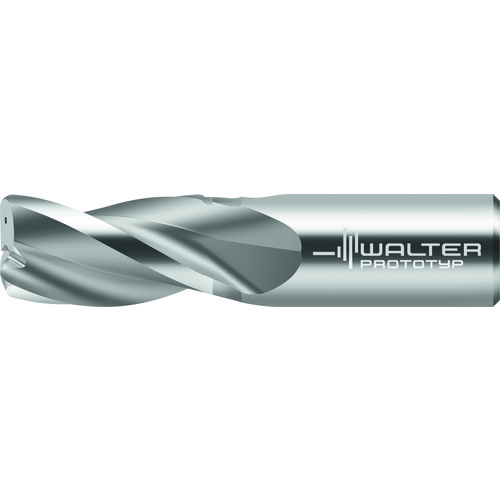

MD266-25.0A3B300B-WJ30UU
SQ End Mill; 25 mm Dia. × 43.75 mm LOC × 25 mm Shank Dia. × 110 mm OAL ; 3 FL ; Carbide ; Uncoated ; Series MD266
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 25 mm | Usable Length (LU) | 52 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 43.75 mm | Grade | WJ30UU |
| Overall Length (OAL) | 110 mm | Tool Type | Corner Radius |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | Coolant Thru |
| Coating | Uncoated | Shank Standard | DIN 6535 HA |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round | Series/List # | MD266 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 3 mm |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
1.371
