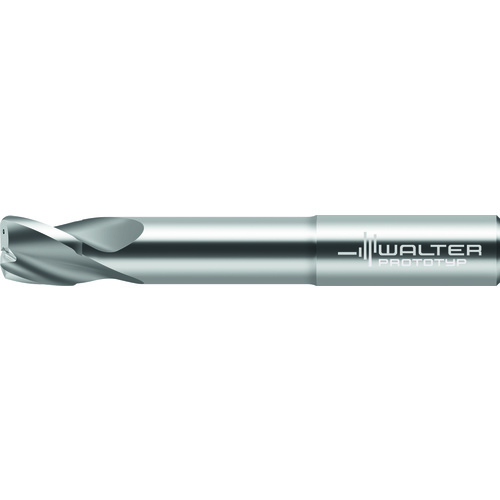

MD266-20.0A3X400D-WJ30UU
SQ End Mill; 20 mm Dia. × 20 mm LOC × 20 mm Shank Dia. × 140 mm OAL ; 4 mm RE ; 3 FL ; 88 mm LBS ; Carbide ; Uncoated ; Series MD266
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 20 mm | Usable Length (LU) | 88 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 20 mm | Grade | WJ30UU |
| Overall Length (OAL) | 140 mm | Tool Type | Corner Radius |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | Coolant Thru |
| Coating | Uncoated | Shank Standard | DIN 6535 HA |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round | Series/List # | MD266 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 4 mm |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
1.228
