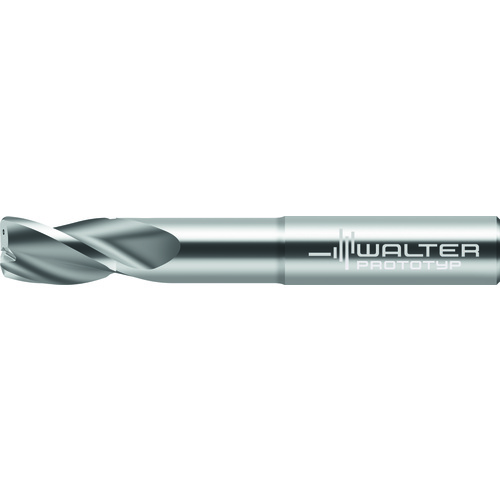

MD266-16.0A3L300D-WJ30UU
SQ End Mill; 16 mm Dia. × 24 mm LOC × 16 mm Shank Dia. × 115 mm OAL ; 3 mm RE ; 3 FL ; 65 mm LBS ; Carbide ; Uncoated ; Series MD266
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 16 mm | Usable Length (LU) | 65 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 24 mm | Grade | WJ30UU |
| Overall Length (OAL) | 115 mm | Tool Type | Corner Radius |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | Coolant Thru |
| Coating | Uncoated | Shank Standard | DIN 6535 HA |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round | Series/List # | MD266 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 3 mm |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.604
