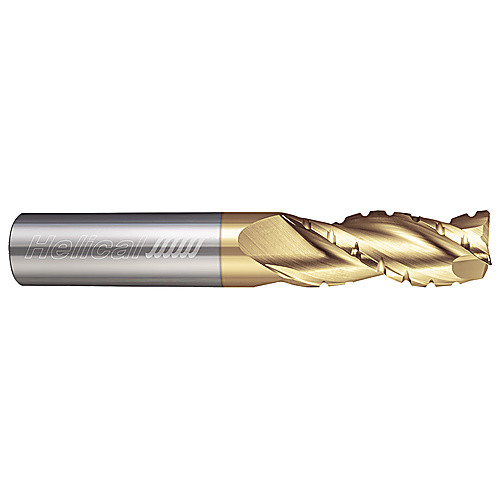

3 Flute - Corner Radius - 35 Degree Helix - 0.3125″ (5/16) Cutter DIA × 0.3125″ (5/16) Shank DIA × 0.0100″ Radius × 0.4375″ (7/16) LOC × 2.0000″ (2) OAL - ZPLUS Coated
SQ End Mill; 5/16″ Dia. × 7/16″ LOC × 5/16″ Shank Dia. × 2″ OAL ; 0.01″ RE ; 3 FL ; Carbide ; ZrN
| Cutting Diameter (DC) | 5/16″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 7/16″ | Corner Radius (RE) | 0.01″ |
| Overall Length (OAL) | 2″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Length Group | 1.4D |
| Coating | ZrN | Decimal Equivalent | 0.3125″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 35 Degrees | Center Cutting | Yes |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.1
