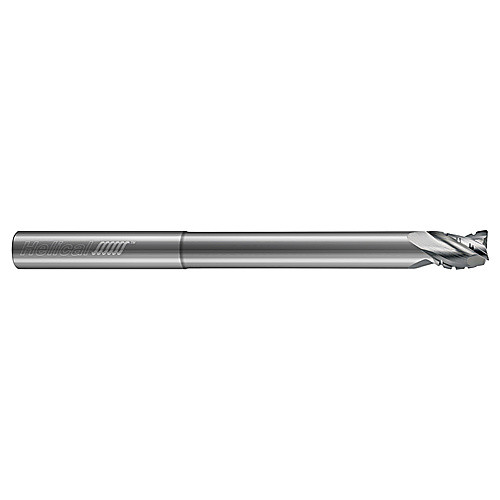

3 Flute - Corner Radius - 35 Degree Helix - 0.1875″ (3/16) Cutter DIA × 0.1875″ (3/16) Shank DIA × 0.0100″ Radius × 0.2188″ (7/32) LOC × 3.0000″ (3) OAL × 1.1250″ (1-1/8) Reach - Uncoated
SQ End Mill; 3/16″ Dia. × 7/32″ LOC × 3/16″ Shank Dia. × 3″ OAL ; 0.01″ RE ; 3 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 3/16″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Corner Radius (RE) | 0.01″ |
| Depth of Cut Maximum (APMX) | 7/32″ | Neck Diameter (DN) | 0.178″ |
| Overall Length (OAL) | 3″ | Neck Length (LN) | 0.906″ |
| Cutting Edge Material | Carbide | Tool Type | Solid Carbide Endmill |
| Coating | Uncoated | Length Group | 6D |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.1875″ |
| Flute Helix Angle (FHA) | 35 Degrees | Measurement Type | Inch |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Corner Radius |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.05
