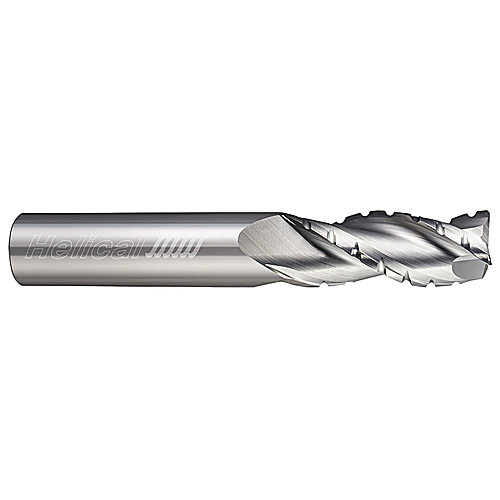

3 Flute - Corner Radius - 35 Degree Helix - 0.1250″ (1/8) Cutter DIA × 0.1250″ (1/8) Shank DIA × 0.0100″ Radius × 0.6250″ (5/8) LOC × 2.5000″ (2-1/2) OAL - Uncoated
Corner Radius End Mill; 1/8″ Dia. × 5/8″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 1/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 5/8″ | Corner Radius (RE) | 0.01″ |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Length Group | 5D |
| Coating | Uncoated | Decimal Equivalent | 0.125″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 35 Degrees | Center Cutting | Yes |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.001
