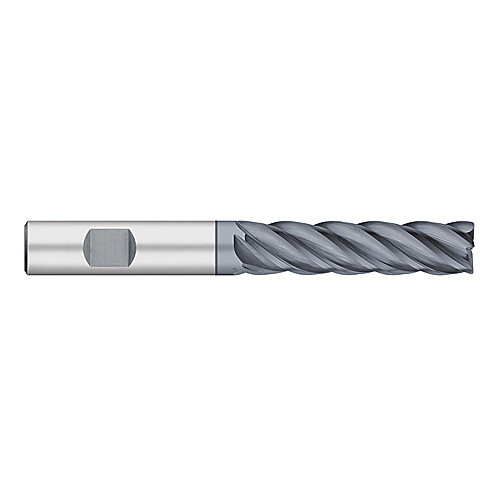

V52LR 1/2 5F VI W/F R-.06
Corner Radius End Mill; 1/2″ Dia. × 2″ LOC × 1/2″ Shank Dia. × 4″ OAL ; 5 FL ; Carbide ; AlTiCrN
| Cutting Diameter (DC) | 1/2″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 2″ | Usable Length (LU) | 2″ |
| Overall Length (OAL) | 4″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.5″ |
| Coating | AlTiCrN | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Corner Radius (RE) / Chamfer Width (CHW) | 0.06″ |
| Flute Helix Angle (FHA) | 38 Degrees | Center Cutting | Yes |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.356
