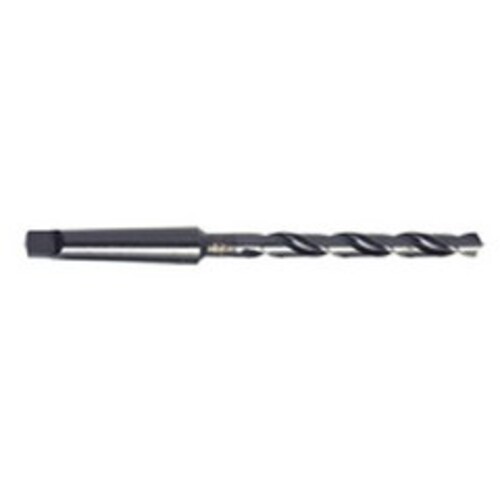

1-23/32 Dia. - 17-1/8 OAL - Surface Treated - HSS - Standard Taper Shank Drill Series/List #1302
| Measurement Type | Inch | Cutting Depth | 10-1/8″ |
| Drill Bit Size / Cutting Diameter (DC) | 1-23/32″ | Cutting Edge Material | HSS |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1-23/32″ | Flute Length | 10-1/8″ |
| Decimal Equivalent | 1.7188″ | Flute Count (NOF) | 2 |
| Shank Size (SS) | MT5 | Overall Length (OAL) | 17-1/8″ |
| Angle | 118 Degrees | Point Shape | Standard Point |
| Applicable Material | Recommended for production work in a wide variety of materials | Shank Type | Morse Taper |
| Coating | Black Oxide | Tool Type | Taper Shank |
| Coolant Supply Property (CSP) | External | Series/List # | 1302 |
Product Features
| Remarks | Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Length
8.00000
Package Width
1.50000
Package Height
1.50000
Package Weight
7.68
