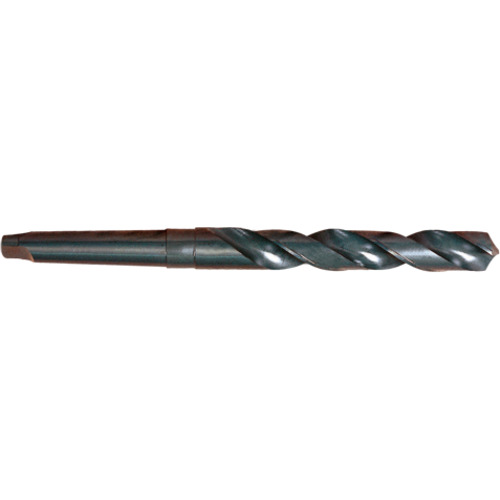

Morse Taper Shank Drill; 53/64″ Dia. × 3MT Shank × 10-3/4″ OAL × 6-1/8″ Flute Length ; 118 Degrees ; HSS ; Oxide ; Series D1211
| Measurement Type | Inch | Cutting Edge Material | HSS |
| Drill Bit Size / Cutting Diameter (DC) | 53/64″ | Flute Length | 6-1/8″ |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 53/64″ | Helix Angle | 33 Degrees |
| Decimal Equivalent | 0.8281″ | Flute Count (NOF) | 2 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 21.034 mm | Overall Length (OAL) | 10-3/4″ |
| Angle | 118 Degrees | Shank Type | Morse Taper |
| Applicable Material | | Steel | | Standard | ANSI |
| Coating | Oxide | Tool Type | Morse Taper Shank Twist Drill |
| Coolant Supply Property (CSP) | External | Series/List # | D1211 |
| Cutting Depth | 6-1/8″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
11.875
Package Width
1.25
Package Height
1.25
Package Weight
1.223
