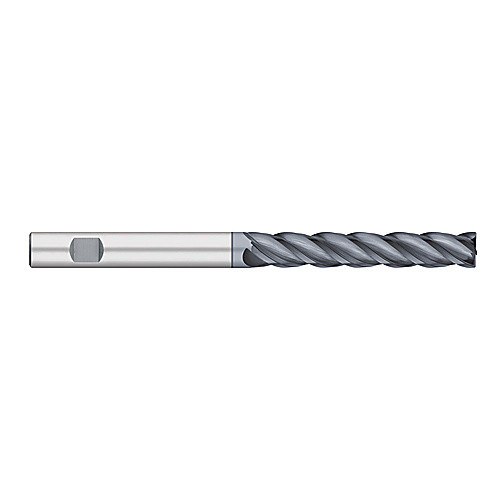

V42XLR 1 4F 7L EX VI W/F
Corner Radius End Mill; 1″ Dia. × 4-1/4″ LOC × 1″ Shank Dia. × 7″ OAL ; 4 FL ; Carbide ; AlTiCrN
| Cutting Diameter (DC) | 1″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 1″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 4-1/4″ | Usable Length (LU) | 4-1/4″ |
| Overall Length (OAL) | 7″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | AlTiCrN | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Flute Count (NOF) | 4 | Center Cutting | Yes |
| Flute Helix Angle (FHA) | 38 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
2.167
