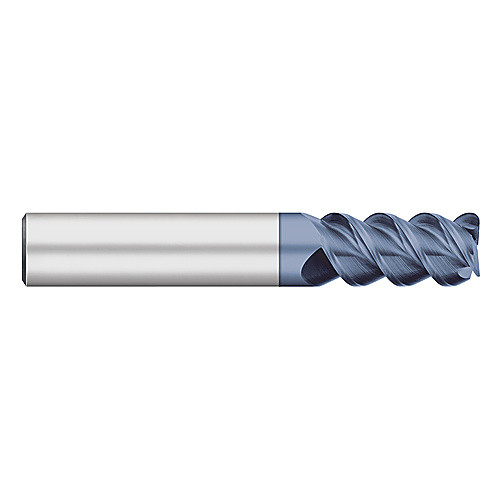

396 5/16 3F-60 RAD-0.020
Corner Radius End Mill; 5/16″ Dia. × 13/16″ LOC × 5/16″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 5/16″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Usable Length (LU) | 13/16″ |
| Depth of Cut Maximum (APMX) | 13/16″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 2-1/2″ | Decimal Equivalent | 0.3125″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | AlTiN | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
| Flute Count (NOF) | 3 | Center Cutting | Yes |
| Flute Helix Angle (FHA) | 60 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.092
