PICCO LM050.08-4 IC909
Tool; 0.157″ Shank Dia. × 0.001″ Max Depth × 0.787″ OAL × 0.001″ Corner Radius ; Carbide ; Left Hand ; TiCrVN ; IC909

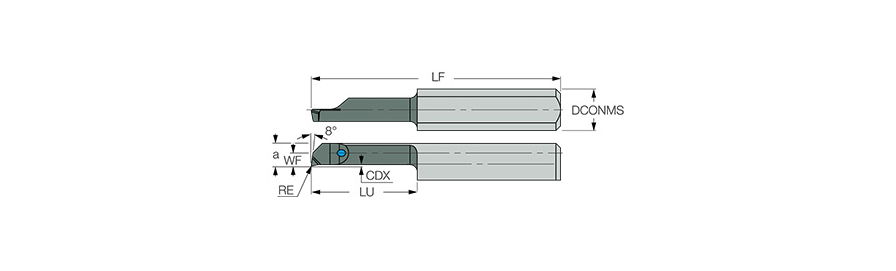

| Connection Diameter Machine Side (DCONMS) | 0.157″ | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.001″ | Cutting Position | Internal |
| Cutting Depth Maximum (CDX) | 0.001″ | Application | | Int. Boring and Profiling | |
| Overall Length (OAL) | 0.787″ | Tool Type | Solid, Turning & Grooving |
| Cutting Direction (HAND) | Left Hand | Minimum Bore Diameter (DMIN) | 0.031″ |
| Cutting Edge Material | Carbide | Front End Width (a) | 0.028″ |
| Coating | TiCrVN | Measurement Type | Inch |
| Grade | IC909 | Body Material | Carbide |
Product Features

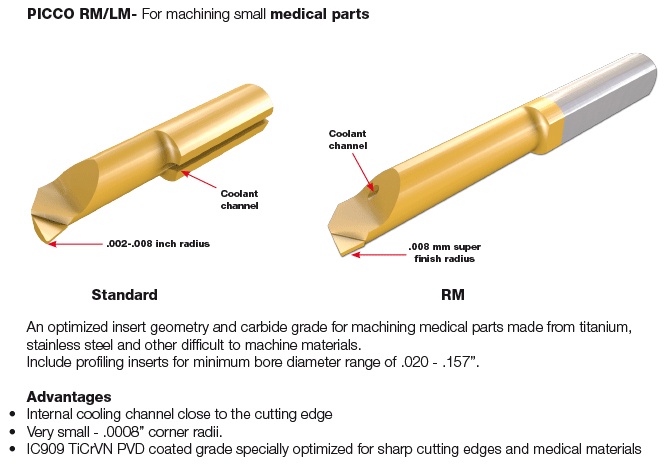

| Family Description | Inserts with sharp corners for internal precision and high surface quality turning and profiling. Designed mainly for machining medical parts. | Country of Origin | Germany |
| Remarks | An optimized insert geometry and carbide grade for machining medical parts made from titanium, medical standard stainless steel and other difficult to machine materials. |
