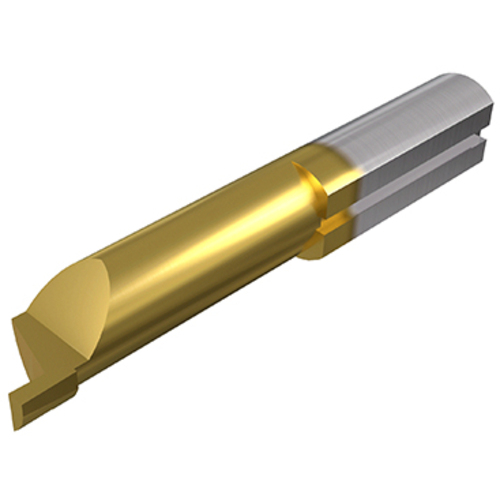

PICCO R 010.2010-20 IC1008
Tool; 0.276″ Shank Dia. × 0.079″ CW × 0.157″ Max Depth × 1.378″ OAL × 0.0394″ Corner Radius ; Carbide ; Right Hand ; TiAlN+TiN ; IC1008

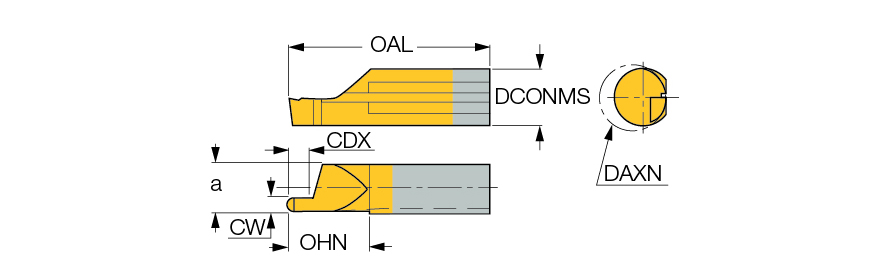

| Connection Diameter Machine Side (DCONMS) | 0.276″ | Cutting Position | External |
| Corner Radius (RE) | 0.0394″ | Application | | Face Grooving | Int. Face Grooving | |
| Cutting Width (CW) | 0.079″ | Tool Type | Face Solid, Grooving &Turning grooving |
| Cutting Depth Maximum (CDX) | 0.157″ | Max. Face Grooving Feed (ffg(max)) | 0.002 ″/rev |
| Overall Length (OAL) | 1.378″ | Min. Face Grooving Feed (ffg(min)) | 0.0008 ″/rev |
| Cutting Direction (HAND) | Right Hand | Axial Groove Outside Diameter Minimum (DAXN) | 0.315″ |
| Cutting Edge Material | Carbide | Front End Width (a) | 0.232″ |
| Coating | TiAlN+TiN | Measurement Type | Inch |
| Grade | IC1008 | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Overhang Minimum (OHN) | 0.79″ |
Product Features
| Family Description | PICCO Inserts for profile face grooving at Dmin .315″. | Country of Origin | Israel |
| Remarks | Only right-hand inserts are available as standard, left-hand inserts on request |
Shipping Info
Package Weight
0.038
