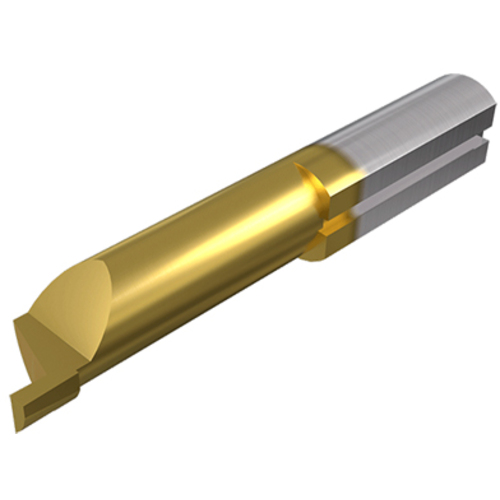

PICCO R 620.1506-20 IC1008
Tool; 0.236″ Shank Dia. × 0.059″ CW × 0.118″ Max Depth × 1.378″ OAL ; Carbide ; TiAlN+TiN ; IC1008

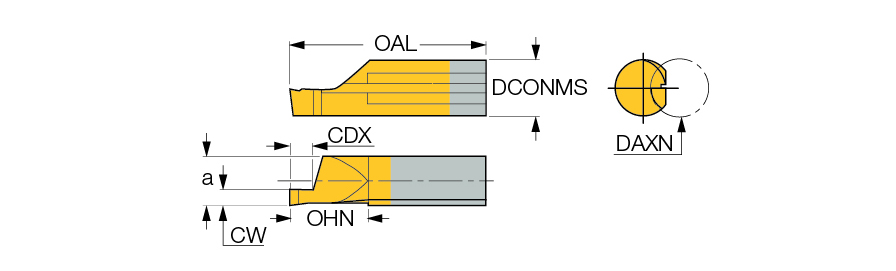

| Connection Diameter Machine Side (DCONMS) | 0.236″ | Application | | Face Grooving | Face Grooving Along Shaft | |
| Cutting Width (CW) | 0.059″ | Tool Type | Face Solid, Grooving &Turning grooving |
| Cutting Depth Maximum (CDX) | 0.118″ | Max. Face Grooving Feed (ffg(max)) | 0.002 ″/rev |
| Overall Length (OAL) | 1.378″ | Min. Face Grooving Feed (ffg(min)) | 0.0004 ″/rev |
| Cutting Edge Material | Carbide | Axial Groove Outside Diameter Minimum (DAXN) | 0.236″ |
| Coating | TiAlN+TiN | Front End Width (a) | 0.205″ |
| Grade | IC1008 | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Body Material | Carbide |
| Cutting Position | External | Overhang Minimum (OHN) | 0.79″ |
Product Features
| Family Description | PICCO inserts for grooving along shaft Dmin .236″. | Country of Origin | Israel |
| Remarks | Only right-hand inserts are available as standard, left-hand inserts on request All carbide inserts are with sharp corners |
Shipping Info
Package Length
2.50000
Package Width
.50600
Package Height
.50600
Package Weight
0.031
