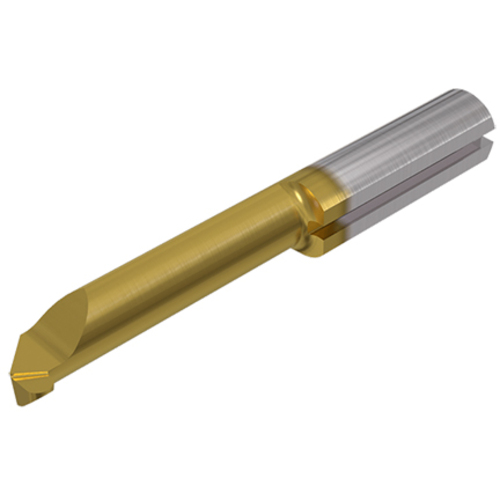

PICCO L 005.1.00-20 IC228
Tool; 0.197″ Shank Dia. × 0.079″ CW × 0.039″ Max Depth × 1.378″ OAL × 0.0394″ Corner Radius ; Carbide ; Left Hand ; TiCN+TiN ; IC228

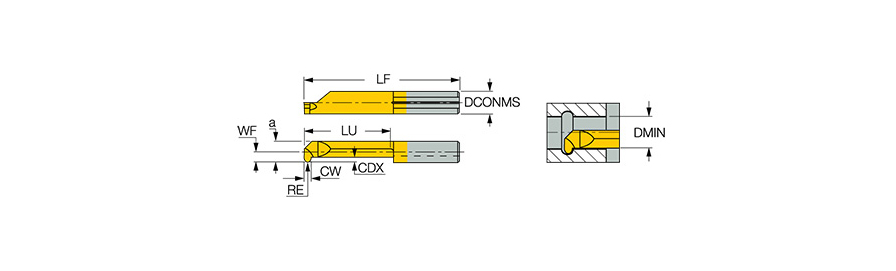

| Connection Diameter Machine Side (DCONMS) | 0.197″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0394″ | Cutting Position | Internal |
| Cutting Width (CW) | 0.079″ | Application | | Int. Profiling | |
| Cutting Depth Maximum (CDX) | 0.039″ | Tool Type | Solid, Turning & Grooving |
| Overall Length (OAL) | 1.378″ | Minimum Bore Diameter (DMIN) | 0.197″ |
| Cutting Direction (HAND) | Left Hand | Front End Width (a) | 0.173″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC228 |
Product Features
| Family Description | Inserts featuring full radius for internal boring and profiling from .157″. | Country of Origin | Germany |
Shipping Info
Package Length
3.75000
Package Width
1.75000
Package Height
.50000
Package Weight
0.022
