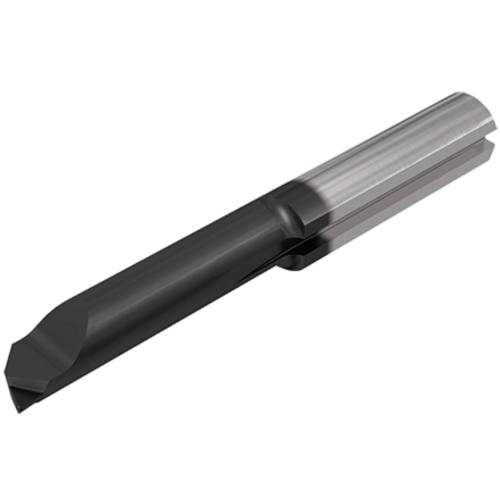

PICCO R 050.20.4-16 IC908
Tool; 0.157″ Shank Dia. × 0.012″ Max Depth × 1.181″ OAL × 0.004″ Corner Radius ; Carbide ; Right Hand ; TiAlN ; IC908

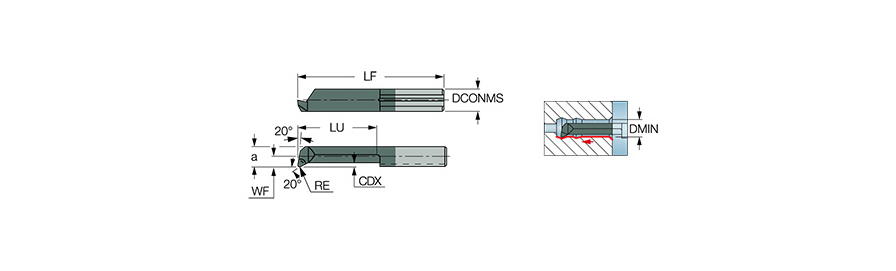

| Connection Diameter Machine Side (DCONMS) | 0.157″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.004″ | Cutting Position | Internal |
| Cutting Depth Maximum (CDX) | 0.012″ | Application | | Int. Boring and Profiling | |
| Overall Length (OAL) | 1.181″ | Tool Type | Solid, Turning & Grooving |
| Cutting Direction (HAND) | Right Hand | Minimum Bore Diameter (DMIN) | 0.157″ |
| Cutting Edge Material | Carbide | Front End Width (a) | 0.138″ |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
Product Features
| Family Description | Inserts for internal turning and chamfering next to the bottom of blind holes | Country of Origin | Israel |
Shipping Info
Package Weight
0.016
