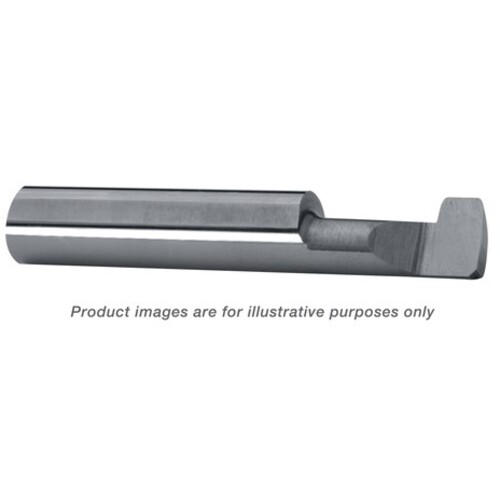

LHGOR208-13 LEFT HAND O-RING G
Tool; 3/8″ Shank Dia. × 0.209″ CW × 13/16″ Max Depth × 2-1/2″ OAL × 0.04″ Corner Radius ; Carbide ; Left Hand ; Uncoated
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.04″ | Coating | Uncoated |
| Cutting Width (CW) | 0.209″ | Minimum Bore Diameter (DMIN) | 3/8″ |
| Cutting Depth Maximum (CDX) | 13/16″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2-1/2″ | Cutting Length | 1/8″ |
| Cutting Direction (HAND) | Left Hand | Body Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.156
