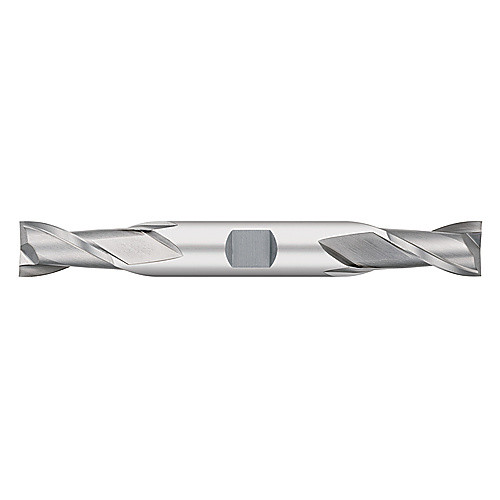

817 5/16 DE 2F COB-3/8SHK
Square End Mill; 5/16″ Dia. × 9/16″ LOC × 3/8″ Shank Dia. × 3-1/2″ OAL ; 2 FL ; HSS ; Uncoated
| Cutting Diameter (DC) | 5/16″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 9/16″ | Usable Length (LU) | 9/16″ |
| Overall Length (OAL) | 3-1/2″ | Tool Type | End Mill |
| Cutting Edge Material | HSS | Decimal Equivalent | 0.3125″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Center Cutting | Yes |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.079
