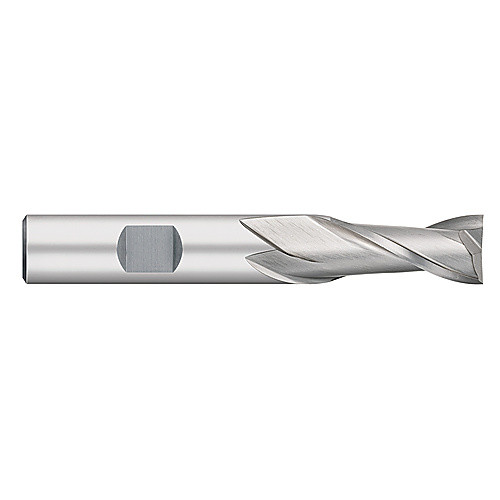

807 3/4 SE 2F COB- 5/8SHK
Square End Mill; 3/4″ Dia. × 1-5/16″ LOC × 5/8″ Shank Dia. × 3-7/16″ OAL ; 2 FL ; HSS ; Uncoated
| Cutting Diameter (DC) | 3/4″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 1-5/16″ | Usable Length (LU) | 1-5/16″ |
| Overall Length (OAL) | 3-7/16″ | Tool Type | End Mill |
| Cutting Edge Material | HSS | Decimal Equivalent | 0.75″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Center Cutting | Yes |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.284
